Mya 4 Reaction Station

Video
Details

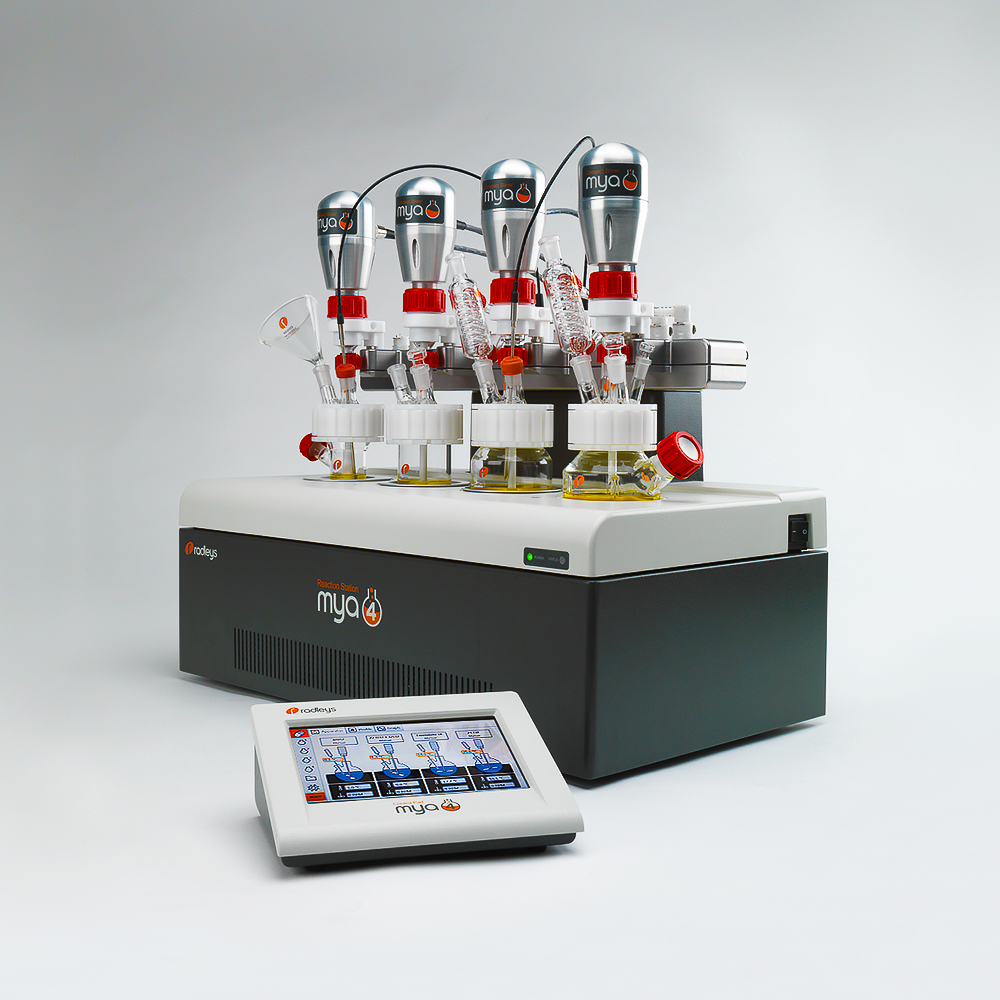

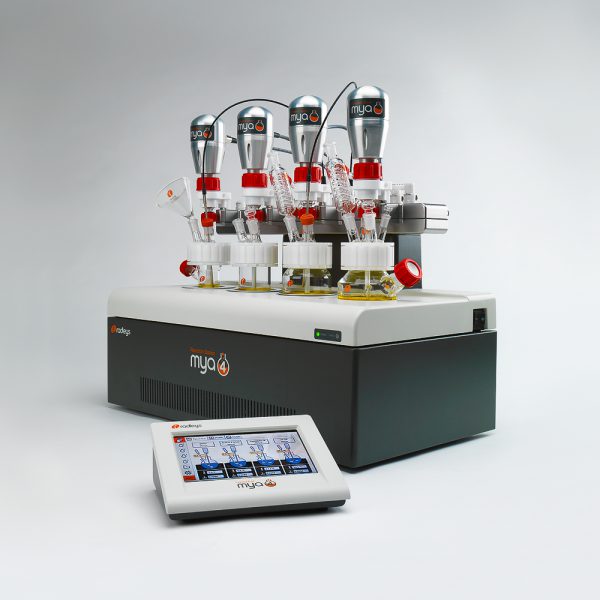

A 4-zone reaction station offering safe and precise heating, active cooling, software control and data-logging for 24/7 unattended chemistry

One Reaction Station, with limitless possibilities



  • 4 independent zones
  • Magnetic and overhead stirring
  • -30 °C to +180 °C
  • 2 ml to 400 ml
  • Software control

Flexible and versatile

  • 4 different zones, each with heating and active cooling
  • Use one compact system for a range of experiments
  • Accepts a wide range of vessel sizes and styles
  • Control your experiments and log results automatically

Safer, cleaner, greener and more productive

  • Replace inefficient, messy and unsafe oil and ice baths
  • Save space compared with separate reaction set-ups
  • Software control improves safety, reduces manual errors, and allows 24/7 unattended chemistry, for improved productivity
  • Create, repeat and share experiments and results with ease and accuracy
  • Easily manage complex multi-step and multi-device experiments
  • Integrate 3rd party devices such as pumps, balances and pH sensors etc.

Mya 4 Control Options

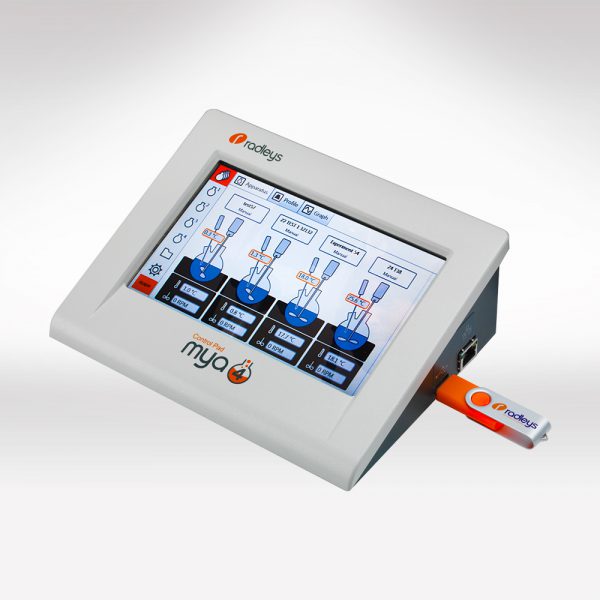

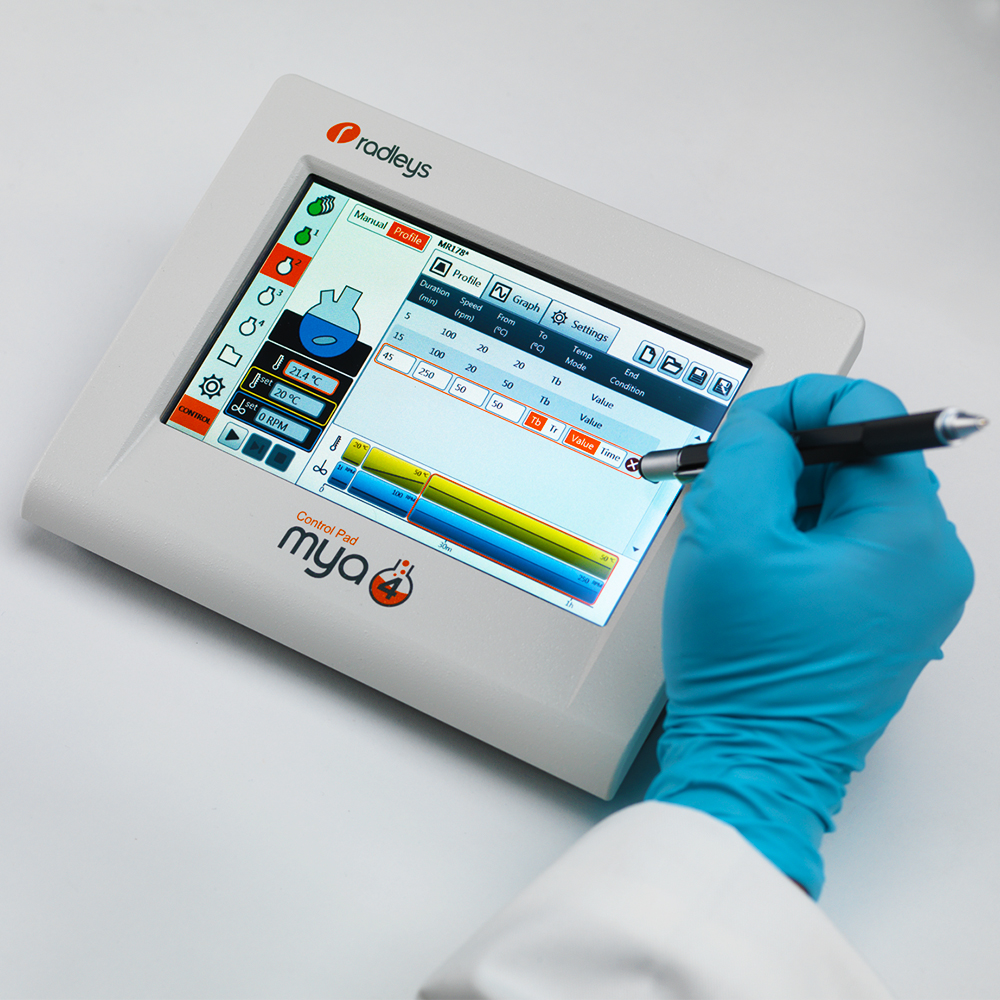

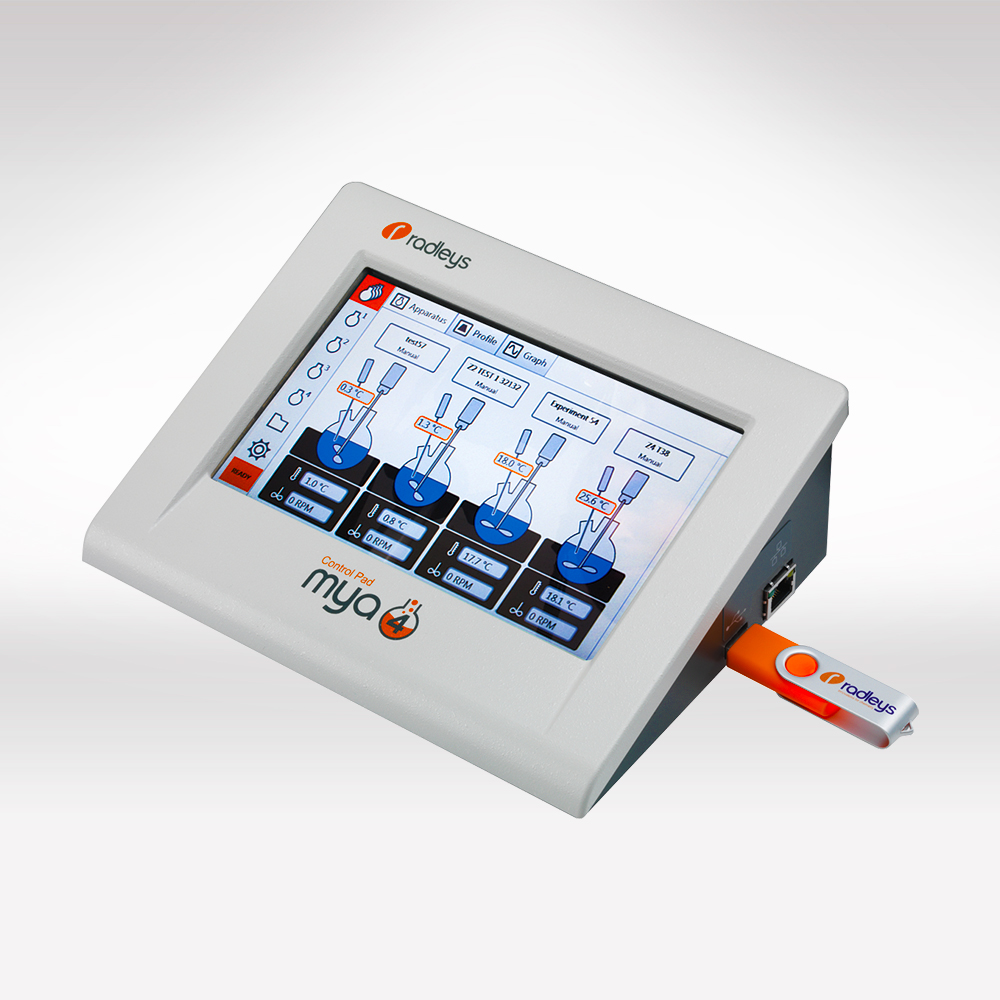

  • Touch-screen Control Pad – supplied as standard

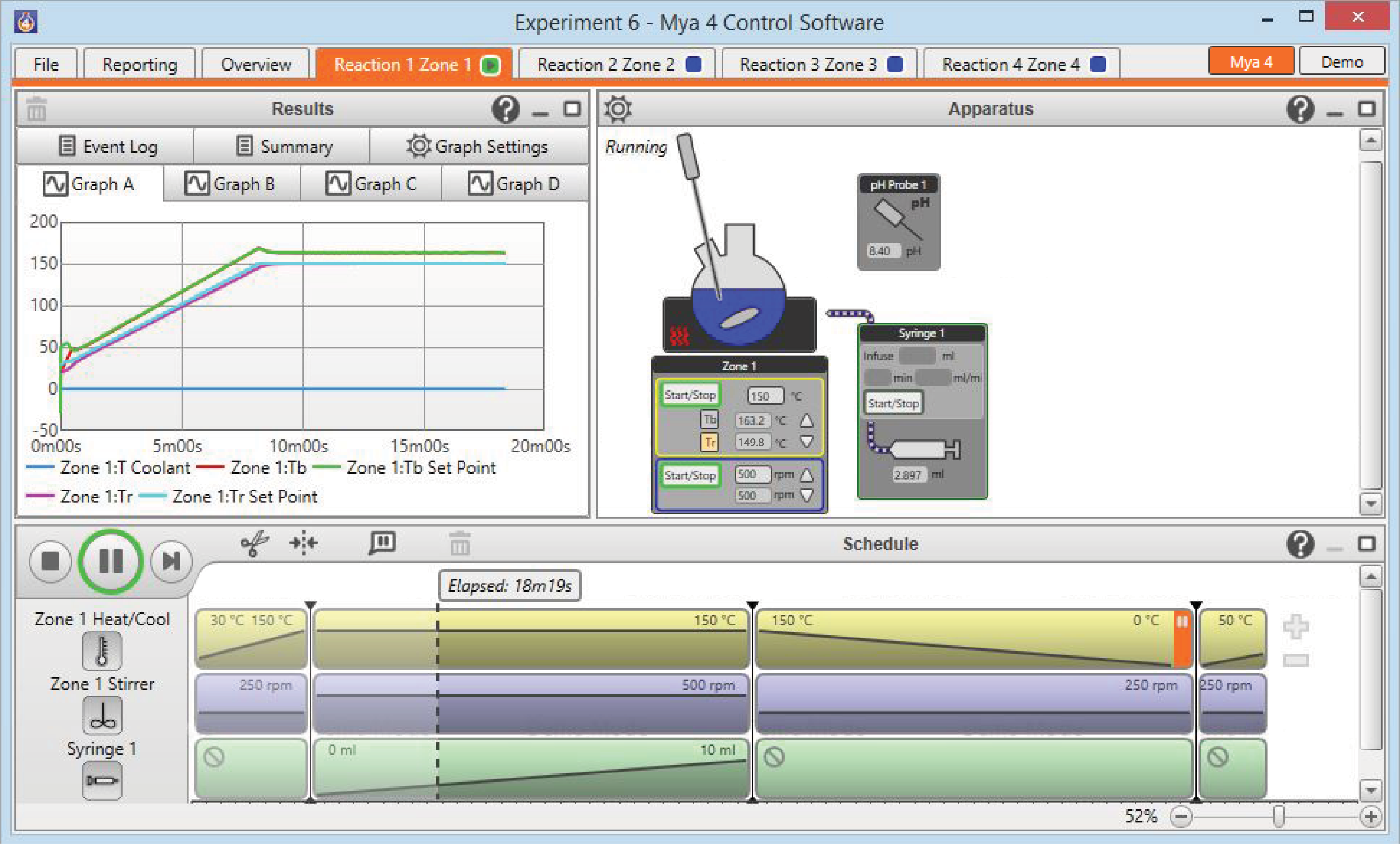

  • Optional PC Control Software – to integrate and control 3rd party devices

Mya 4 Control Pad onlyMya 4 Laptop Controller with Mya Software screenMya 4 Compact Stirrer
Magnetic or optional overhead stirring

  • Integrated magnetic stirring – from 100 to 1000 rpm
  • Optional overhead stirring – from 100 to 1000 rpm

Wide selection of vessel styles and volumes

  • Vials and tubes from 2 ml to 50 ml
  • Round bottom flasks from the Carousel 6 Plus range
  • Process reaction vessels
  • Multi-neck glass lids – 3 or 5-neck
  • Accessory Glassware

Mya 4 Vessel Selection

Key Feature

Techical Data

4 independently controlled reaction zones

  • Use 1, 2, 3 or 4 zones
  • Operate zones in parallel or individually by multiple users
  • Removable anodised aluminium inserts for different size vessels

Precise temperature control

  • Temperature range from -30 °C to +180 °C
  • Up to 200 °C difference between adjacent positions
  • Control the temperature of each zone independently
  • Choose to control by block or solution temperature
  • Pt100 temperature probes available in stainless steel or PTFE coated

Use Mya 4 with or without a chiller

  • Mya 4 uses powerful Peltier technology to provide rapid cooling to -30 ˚C.
  • Peltier cells require tap or chilled water to dissipate heat.
Peltier cooling source Tap water at 15 °C Chilled water at 5 °C
Minimum block temperature  -25 °C  -30 °C
Minimum solution temperature  -20 °C  -25 °C

Magnetic or optional overhead stirring

  • Integrated magnetic stirring – from 100 to 1000 rpm
  • Optional overhead stirring – from 100 to 1000 rpm
  • Control the stirring speed of each position independently
  • Use magnetic or overhead stirring in adjacent zones

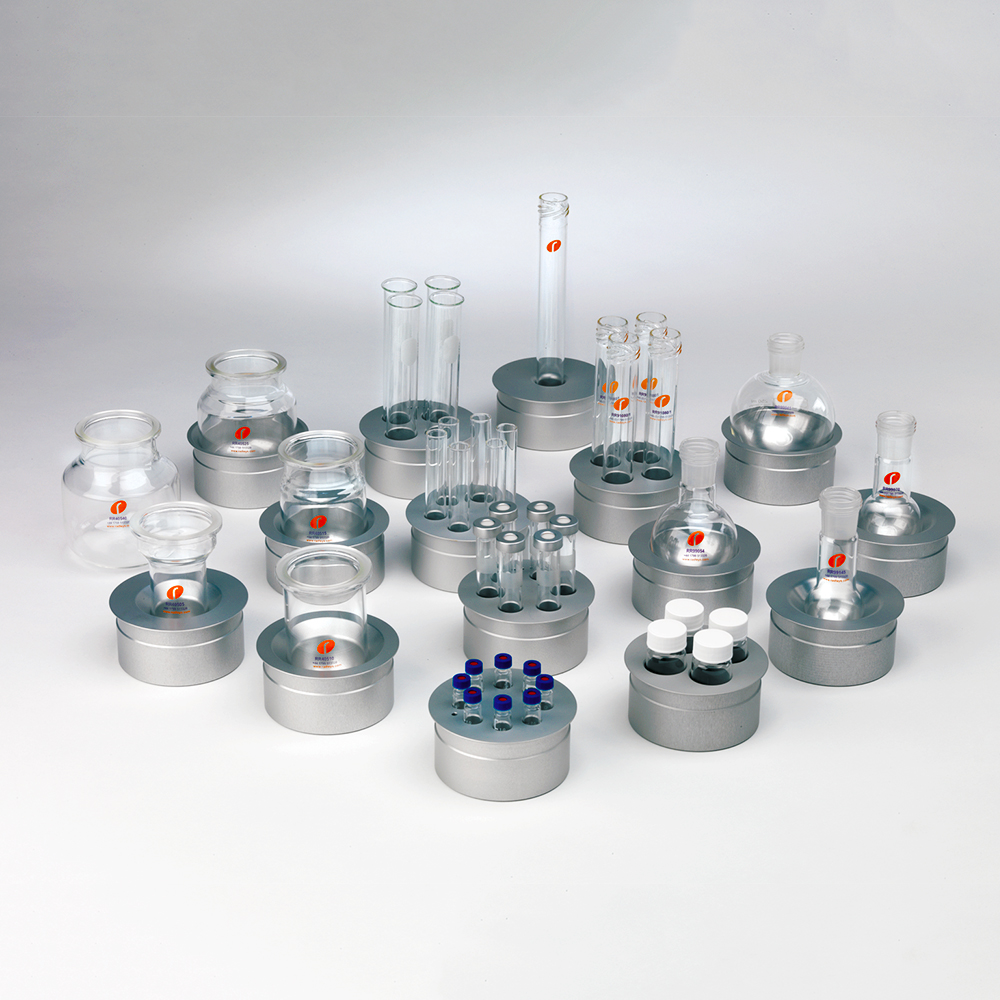

Wide selection of vessel styles and volumes

Vials and tubes from 2 ml to 50 ml:

  • 12 mm, 16 mm, 17 mm, 17 mm tapered, 24 mm, 1 inch and 28 mm diameters
  • Radleys Carousel 12 Plus reaction tubes

Round bottom flasks from the Carousel 6 Plus range:

  • 25 ml, 50 ml, 100 ml and 250 ml
  • One or two side arm options
  • Standard and wide neck options
  • Baffled vessel options

Process reaction vessels:

  • With straight sides and dished base to mimic jacketed reactors
  • 50 ml, 100 ml, 150 ml, 250 ml and 400 ml
  • Side arm option
  • Baffled vessel options

Multi-neck glass lids – 3 or 5-neck

  • For wide neck round bottom flasks and process vessels

Accessory Glassware

  • Condensers, dropping funnels, solid addition funnels, stoppers etc.
