Reactor-Ready™ Lab Reactor

01 Photo Gallery

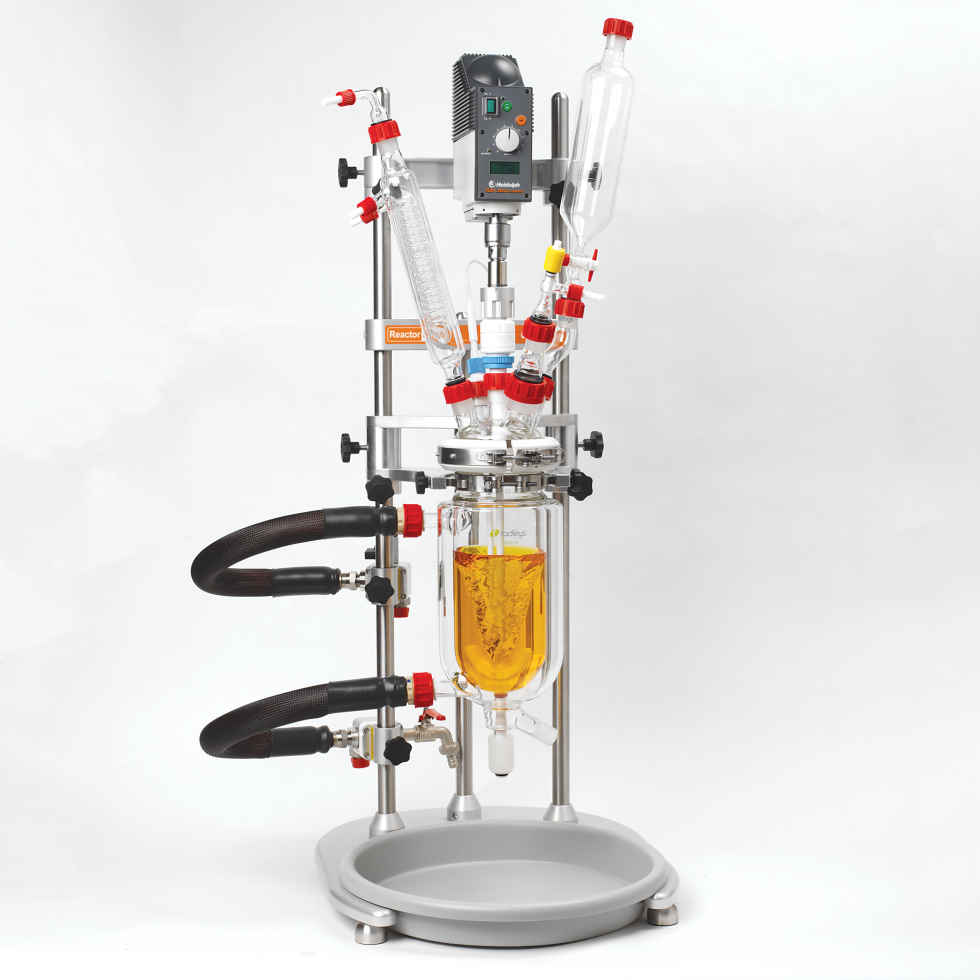

02 The Reactor-Ready Lab Reactor - 100 ml to 5 litres

Swap reaction vessels in minutes, not hours

Reactor-Ready is designed as a universal reactor work station with a range of easily interchangeable vessels from 100 ml to 5 litres which can be configured to suit the chemistry and scale needed for each project. Easy to use, this one unique framework can replace many, saving money and fumehood space.

Click to enlarge

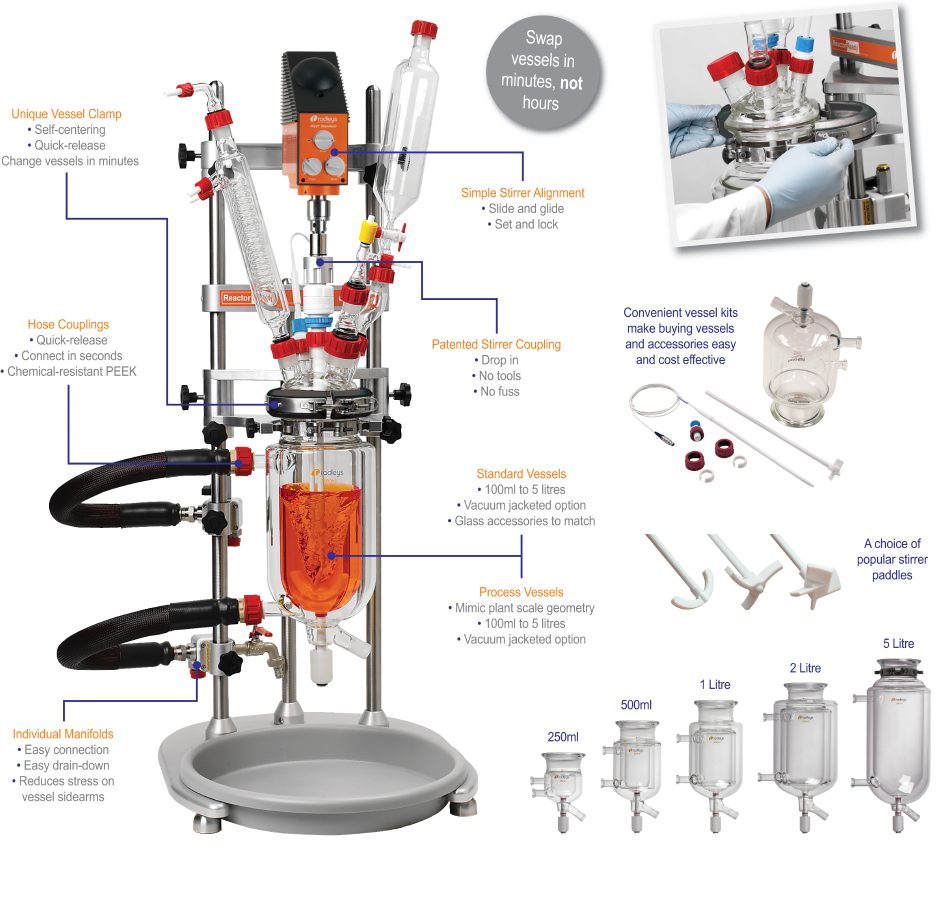

Reactor-Ready Lab Reactor Features

  • Rapid, tool-free vessel exchange with quick-release vessel clamp and hose couplings.
  • Accepts all leading brands of overhead stirrer and allows easy, tool-free adjustment.
  • Triple support stand features heavy duty stainless steel support rods for stability.
  • Self-aligning stirrer coupling engages without the need for tools.
  • Innovative hose manifolds allow easy thermofluid drain down.
  • Temperature range: -70 ºC to +230 ºC.
  • Wide range of accessory glassware including condensers, dropping funnels etc.
  • Optional software allows you to log and control stirrers, circulators, balances, pumps, temperature sensors and other devices.

Reaction Vessel Features

  • Range of single and vacuum jacketed vessels from 100 ml to 5 litres.
  • Process vessels to mimic larger scale plant or manufacturing reactors.
  • Precision engineered borosilicate glass vessels.
  • DN100 5 neck Glass Lid fits all Vessel sizes.
  • Vessels feature V4 Zero Dead Space Drain Stopcock which prevents over-tightening which can cause glass breakage.

03 Details

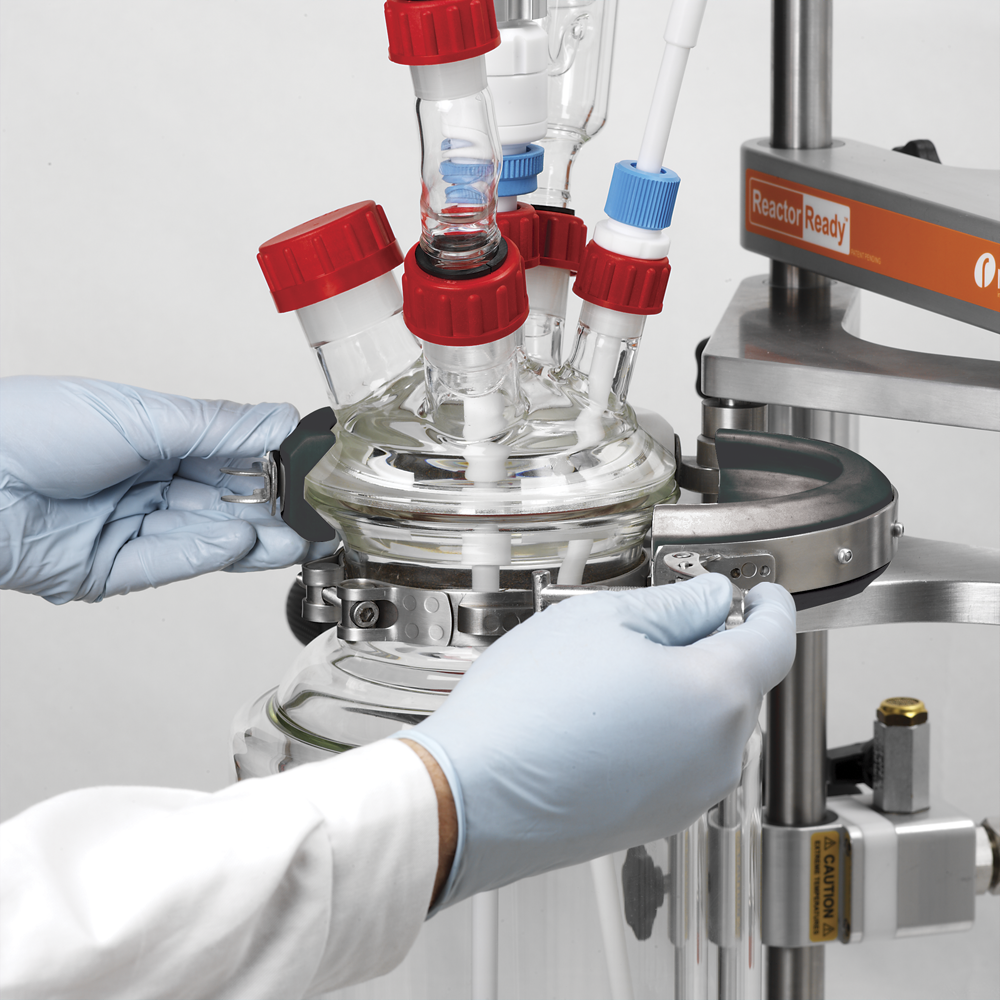

W11 RA16319 Reactor-Ready   Radleys tool-free quick-release vessel clamp

Patented vessel clamp allows rapid vessel exchange without tools
  • Unique clamp design allows vessel to be supported and clamped by a single operator in less than a minute.
  • Use the same clamp to hold all vessel sizes; plus the vessels remain supported even when the clamp is unlocked.

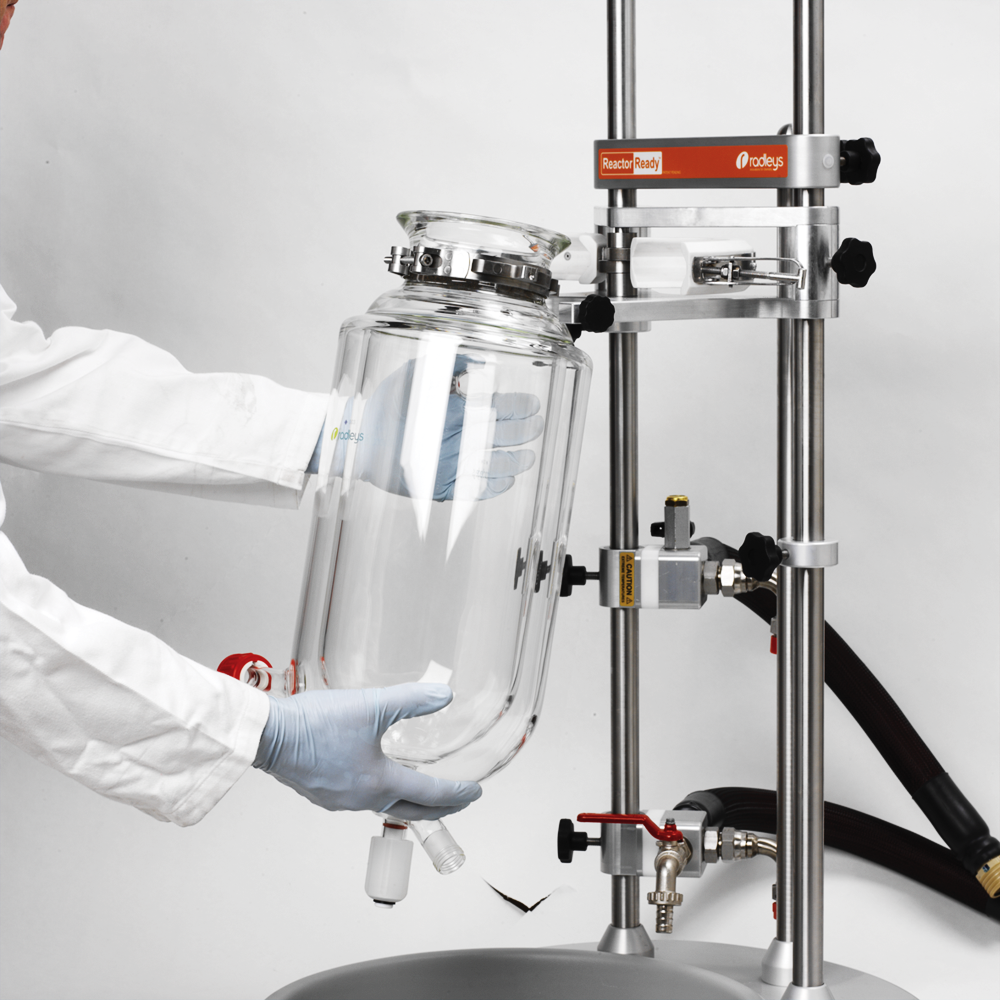

Radleys Reactor-Ready stainless steel vessel support collar   W11 RA15342 Reactor-Ready

Vessel Support Collar aids vessel loading
  • Reactor-Ready uses an innovative support collar fitted to the neck of each vessel, which allows the vessels to be swapped in and out of the Reactor-Reactor core like a cartridge.
  • The stainless steel collar locks securely into the support plate on the framework and allows the vessel to remain supported, even when not clamped.
  • Vessel exchange is tool free and can easily be undertaken by one person.

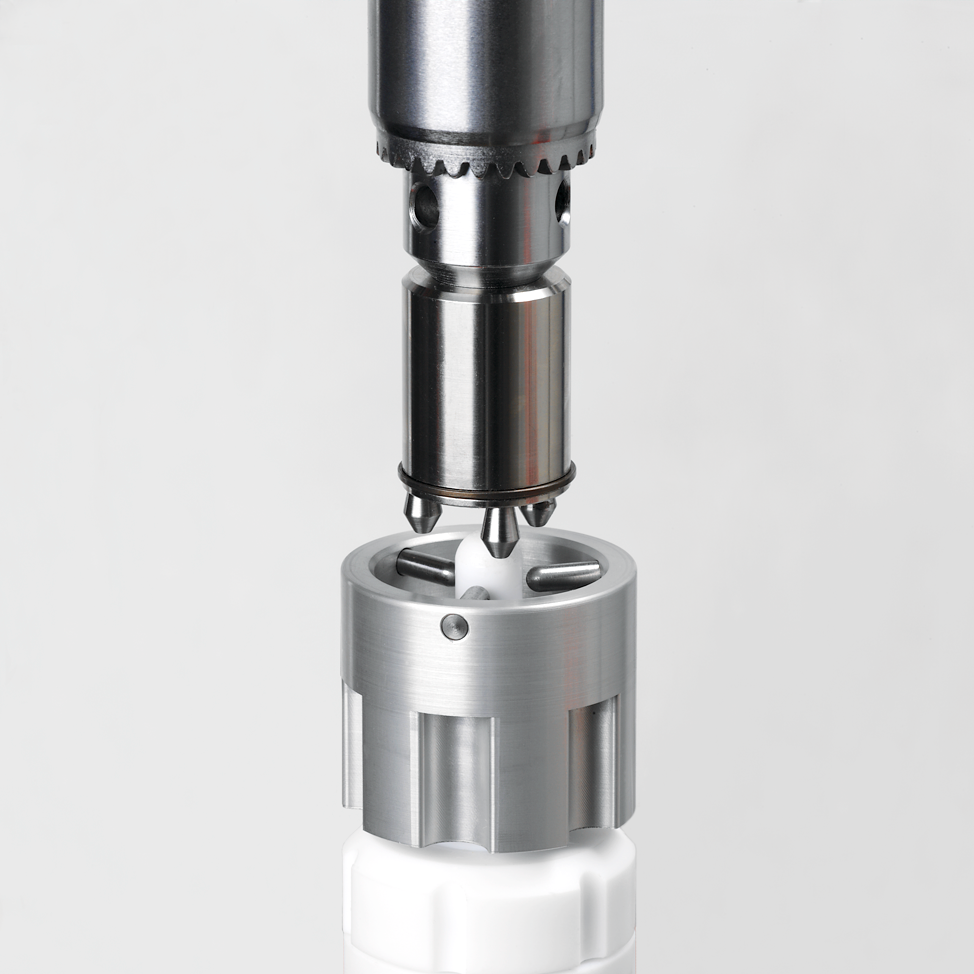

W11 RA16805_2 RR DUO   W11 RA15332-2 Reactor-Ready

Unique Self aligning Stirrer Coupling saves time when changing Vessels
  • Patented drop-in stirrer coupling engages easily without the need for tools.
  • Simply lower the stirrer coupling to engage with the stirrer guide below.
  • The stainless steel stirrer coupling will fit in any standard stirrer chuck.
  • The non-slip design ensures powerful stirring up to 500rpm, or 800rpm for short periods (subject to motor selected).



Reactor-Ready PTFE stirring shafts

Choice of PTFE stirring shafts
  • Reactor-Ready is offered with a choice of PTFE Stirring Shafts: Anchor, Retreat Curve and Turbine or Propeller styles.
  • PTFE Anchor Stirring Shaft is included with all standard reaction vessel kits.
  • PTFE Turbine Stirring Shaft is included with all process reaction vessel kits.



W11 RA15311 Reactor-Ready   W11 RA15327-2 Reactor-Ready

I-beam Support allows the Stirring Motor to be positioned with ease
  • I-beam allows the stirrer drive to be raised or lowered without needing to remount the stirrer.
  • Adjustable safety stop collars located below the I-beam allow the user to lower the stirrer motor to a set position for ease of operation and safety.
  • Reactor-Ready accepts all leading brands of motor or air-powered overhead stirrer with support rods up to 16mm in diameter.

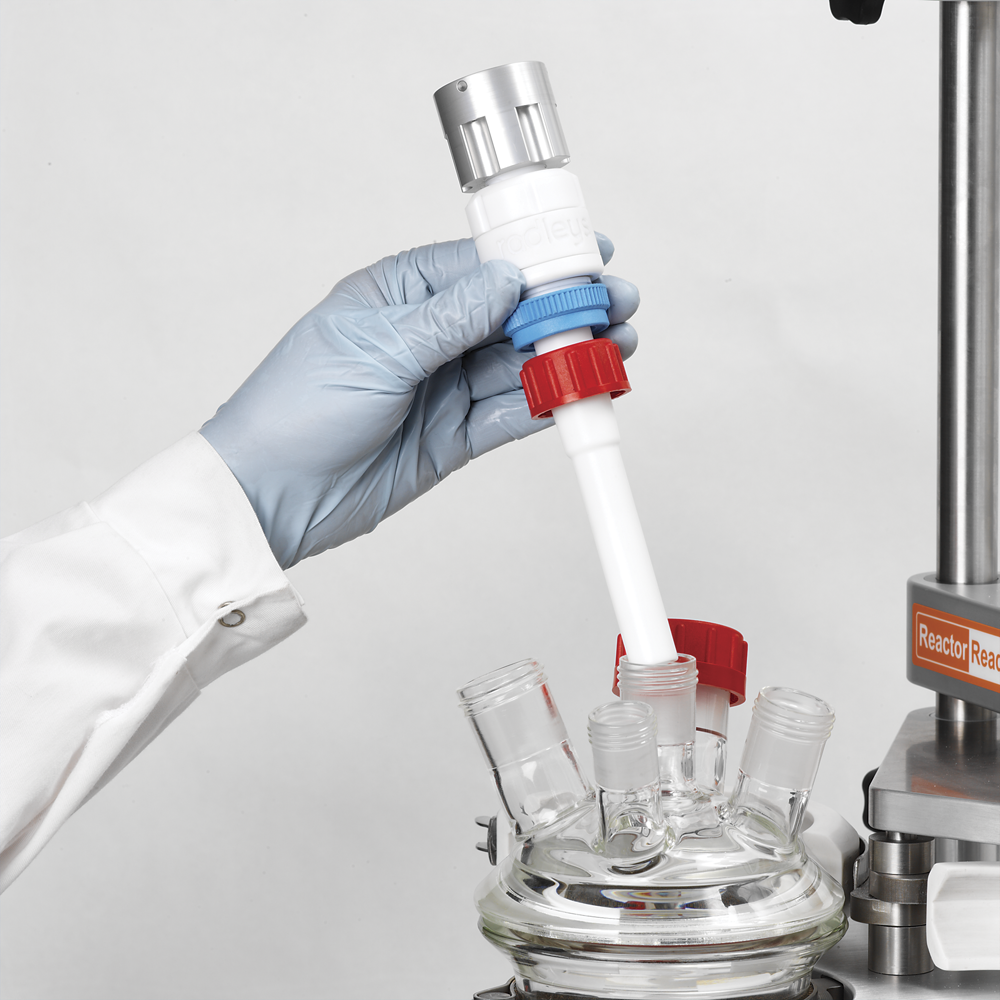

W11 RA15338 Reactor-Ready

Whip-free stirrer guide
  • The Reactor-Ready’s PTFE stirrer guide screws directly on to the glass lid and features a unique extended support which provides whip-free agitation even at high speeds.
  • The stirrer guide is chemically inert, gas tight and suitable for work under vacuum.

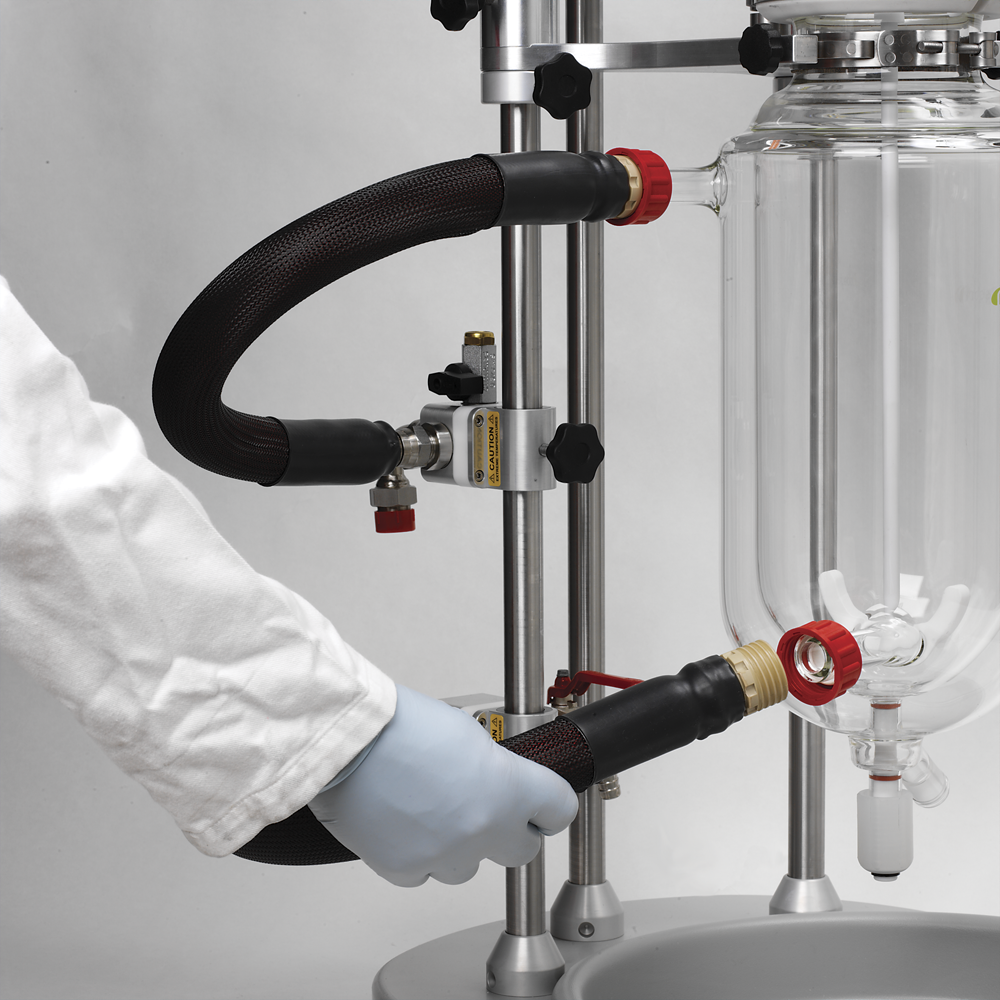

W11 RA15344 Reactor-Ready   W11 RA15345 Reactor-Ready

Quick Release PEEK Hose Couplings
  • Operates over the temperature range -70˚C to +230˚C.
  • Quick release, screwthread design allows rapid exchange of vessels without the use of tools.
  • Simply tighten by hand for a leak tight seal.
  • PEEK with Viton O-rings ensures all wetted parts are chemically resistant.
  • Lightweight, metal free design prevents chipping and minimises strain on the glass fitting.
  • All hoses have a 12mm ID, maximising thermofluid flow and heating/cooling performance.
  • Low thermal conductivity of PEEK reduces frosting when cooling.



W11 RA15598 Reactor-Ready   W11 RA15605 Reactor-Ready

Hose Manifolds allow easy Thermofluid drain down
  • The inlet and outlet hoses from the Reactor-Ready vessel connect to manifolds attached to the support rod.
  • These manifolds serve two important functions:
    1. Supports the hose running from the vessel, thereby eliminating stress on the glass sidearm.
    2. Allows thermofluid drain down which provides a quick and clean method of removing the thermofluid from the vessel jacket when changing vessels.
  • By opening the venting valve on the (upper) outlet manifold, thermofluid drains from the vessel back to the thermoregulator under gravity.<
  • Opening the drain tap on the (lower) inlet manifold allows drainage to an external reservoir.
